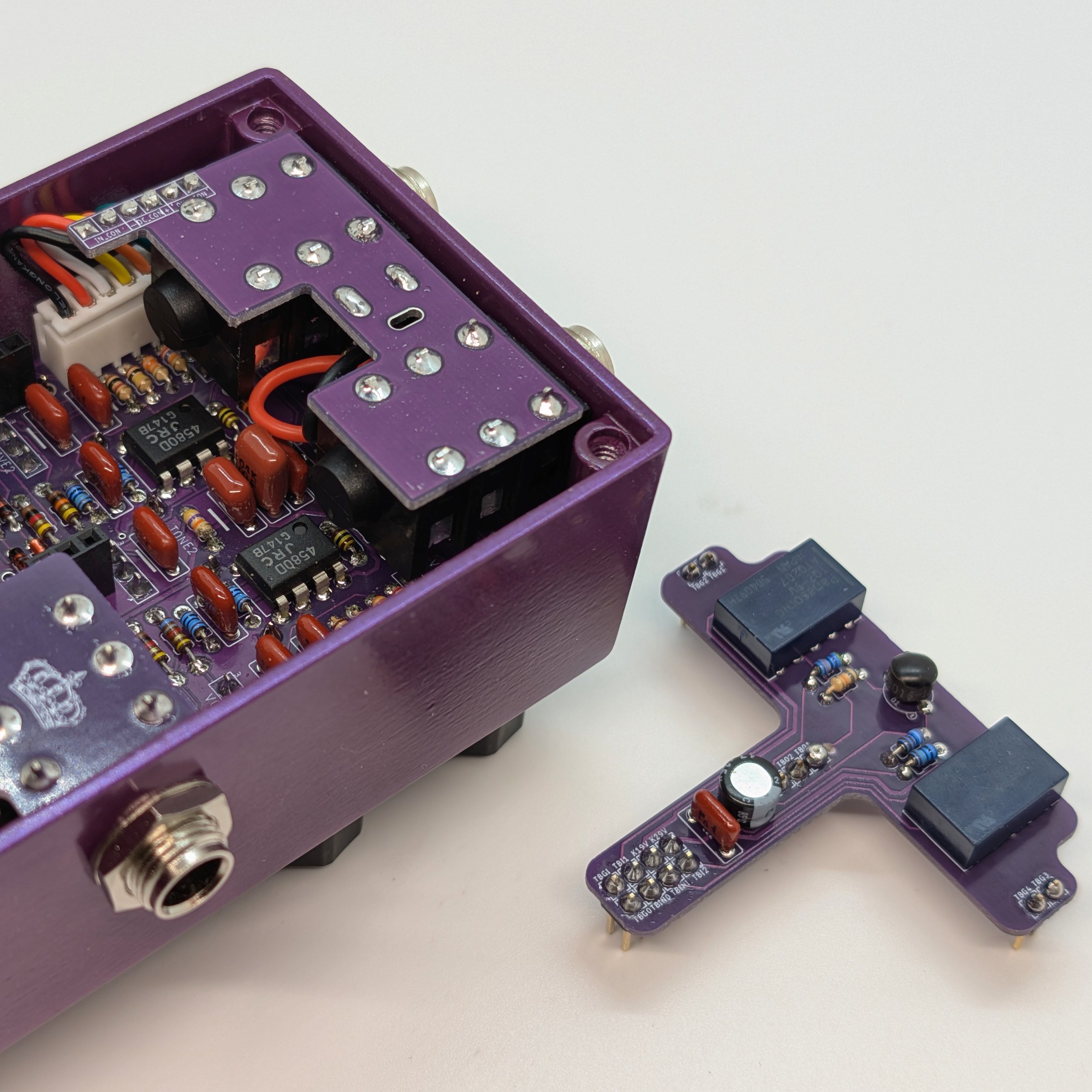

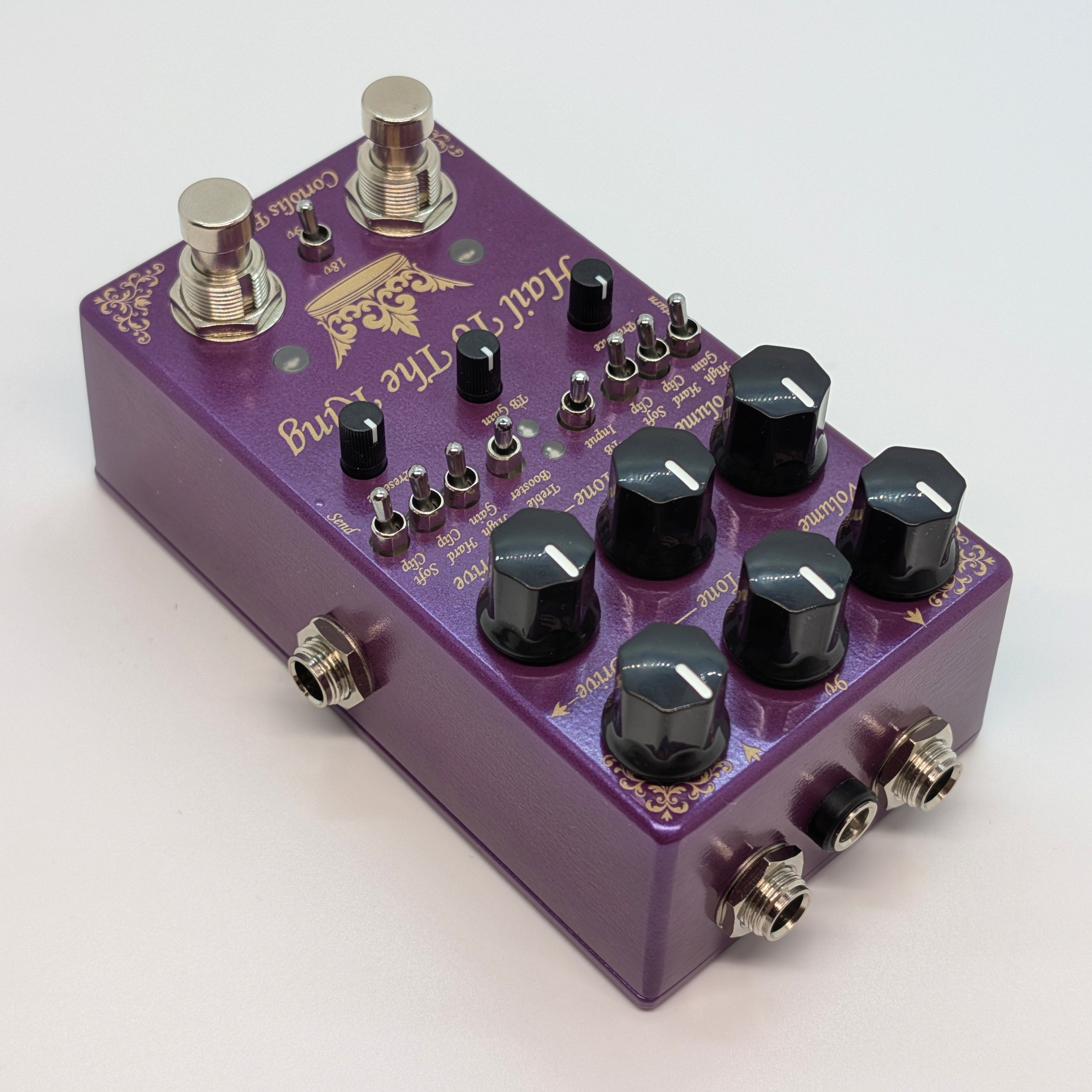

Includes all features of the HTTK and adds a Rangemaster style treble booster that can be switched to either side (or off).
Features of the treble booster include:

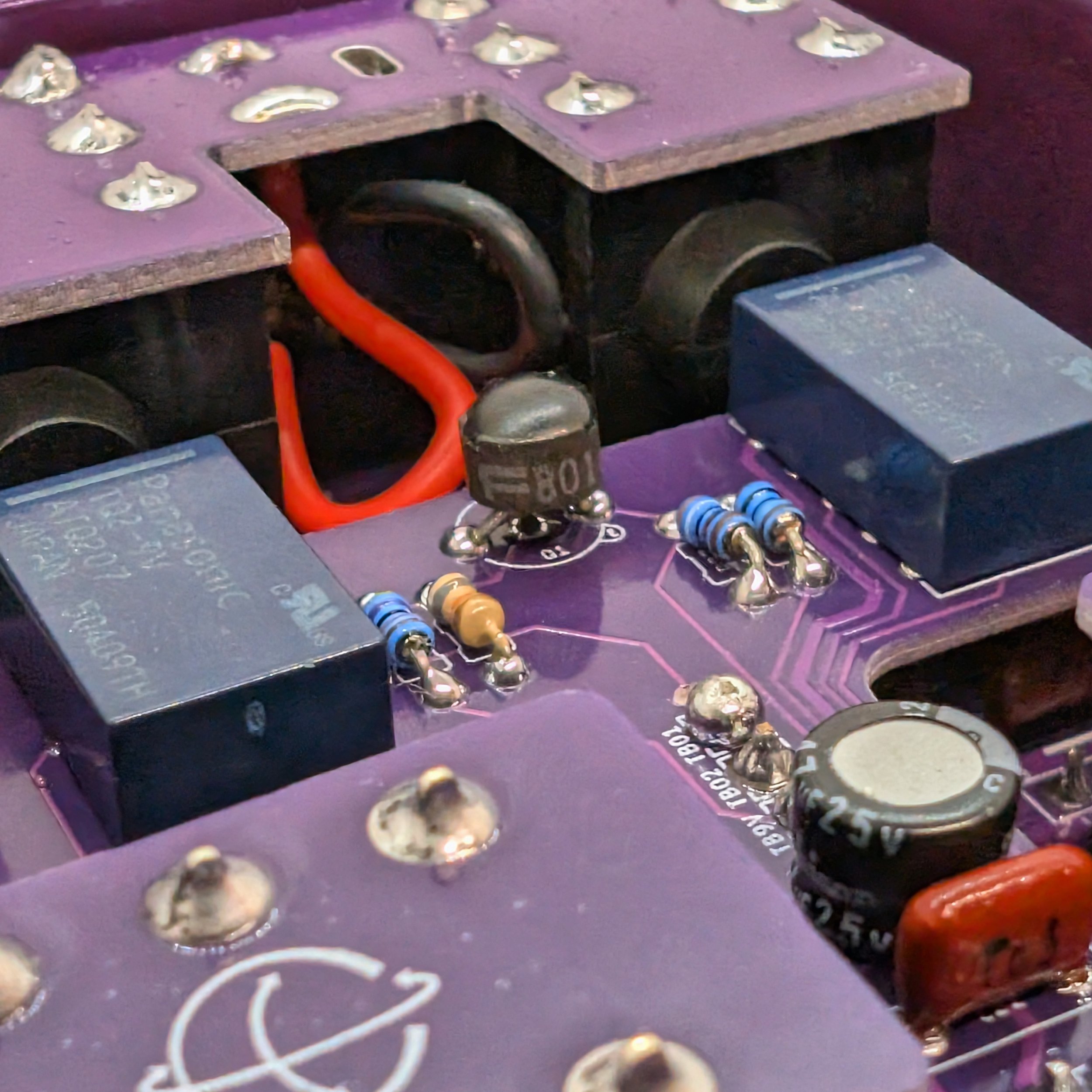

A NOS Fairchild silicon “dot” transistor that is in the ideal gain range for the Rangemaster circuit.
Selectable input capacitors to adjust the circuit input frequencies.
Fully adjustable gain control.
Other adjustments:

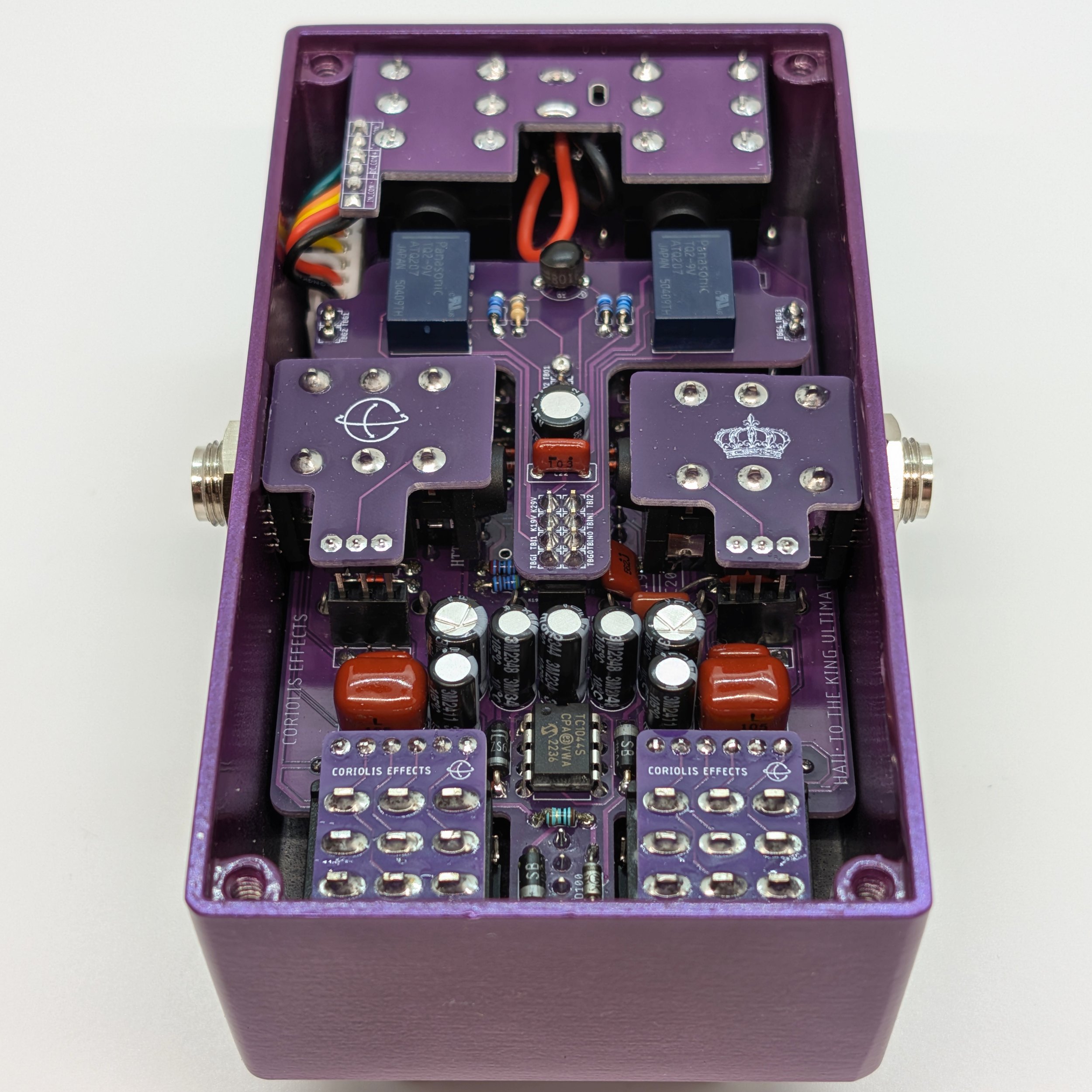

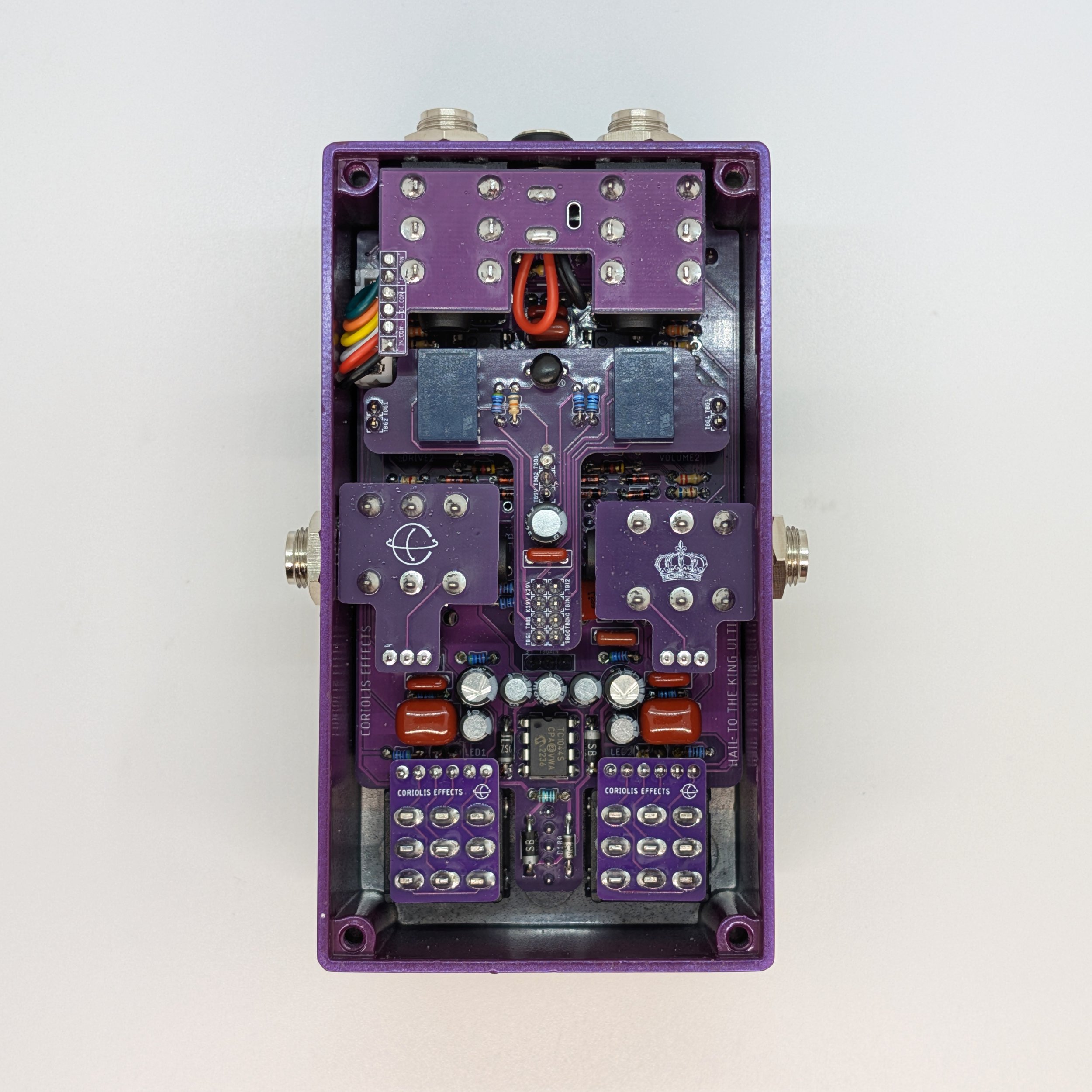

Implemented a PCB main jacks board and PCB mount jacks for the input/output to match the send/return.

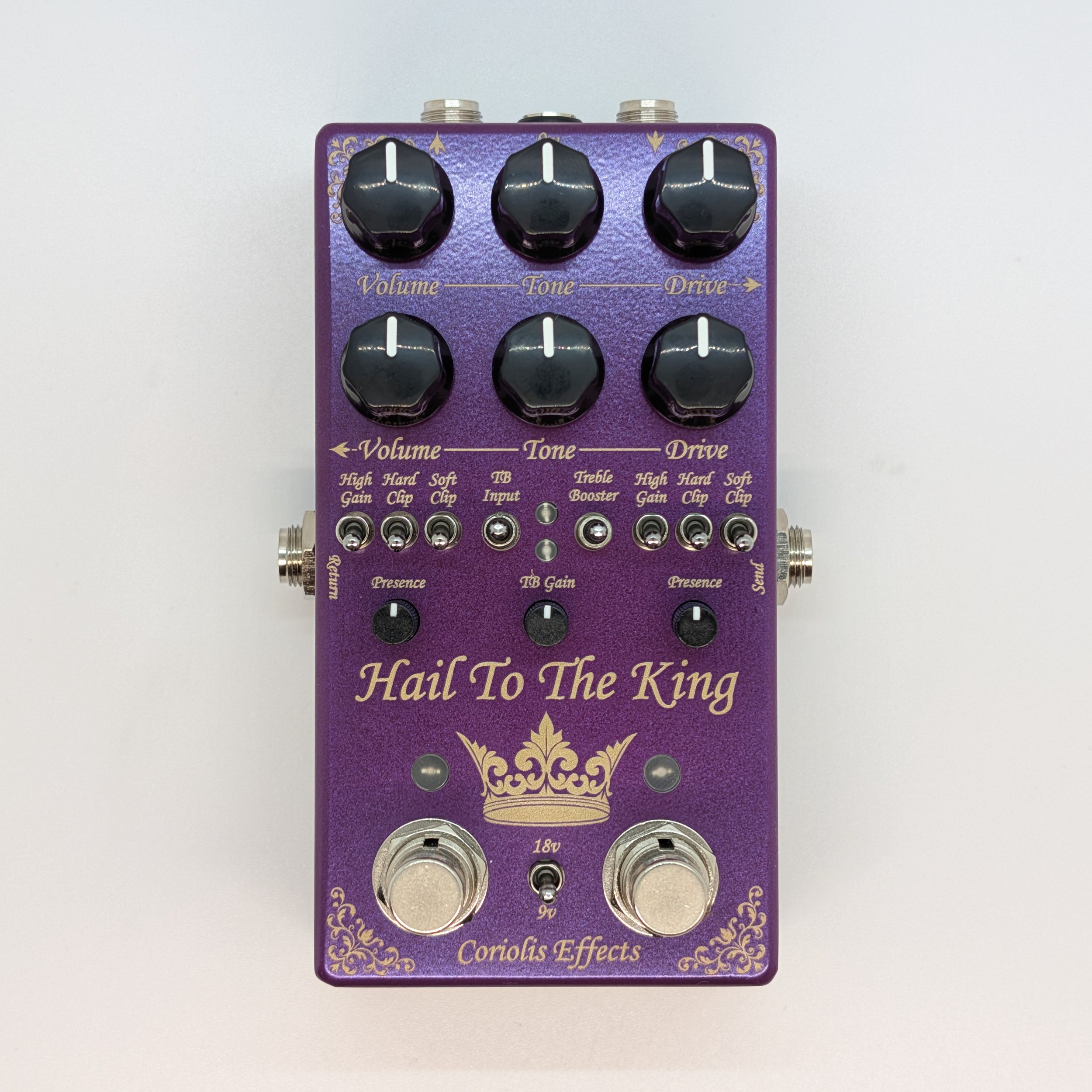

Updated font and graphics. Legibility of the smaller words was one of the main complaints and this greatly improves that.
More robust Alpha footswitches.
Flush mount soft glow LEDs.

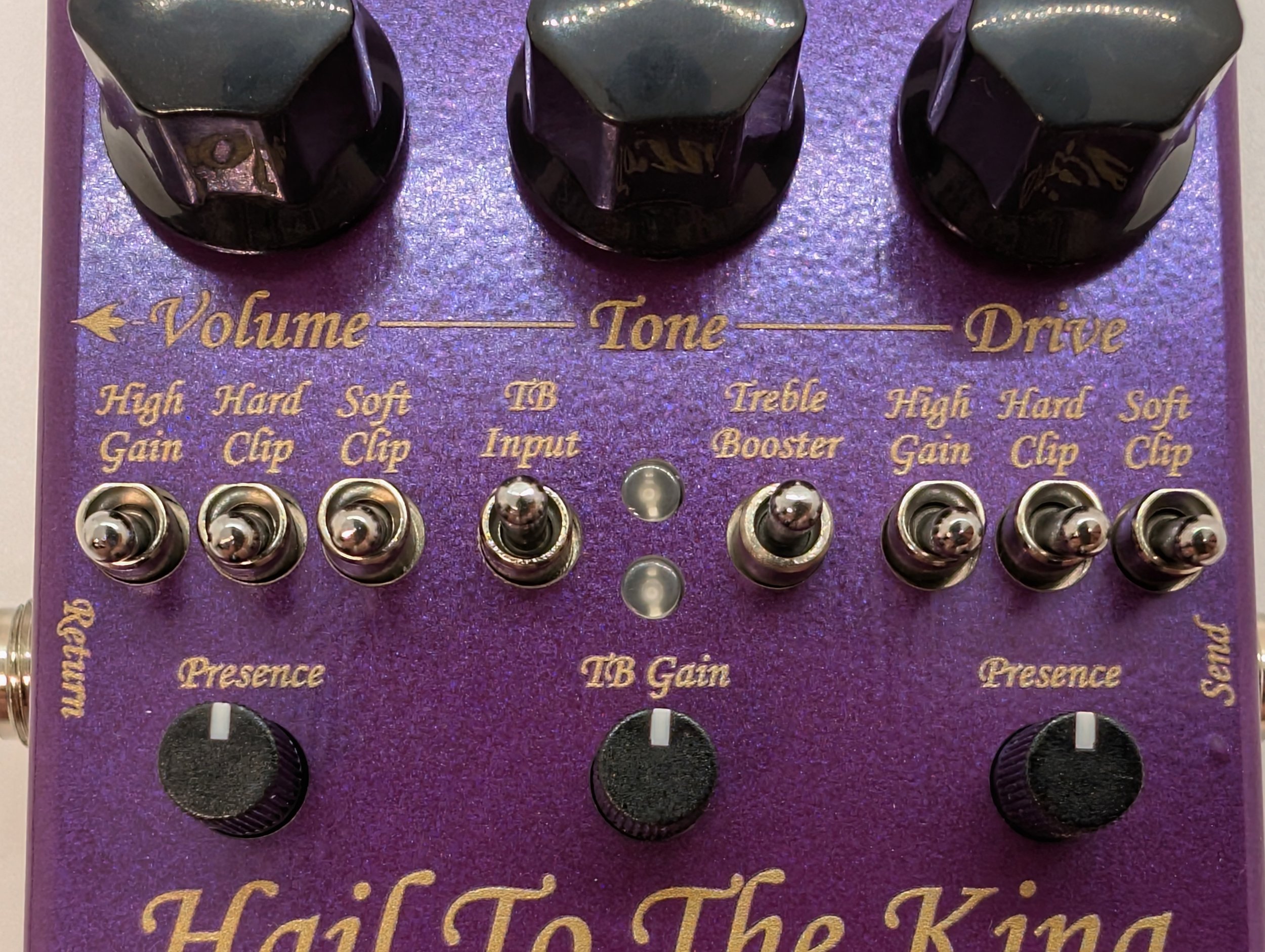

Small knobs now have white indicators for increased visibility.
