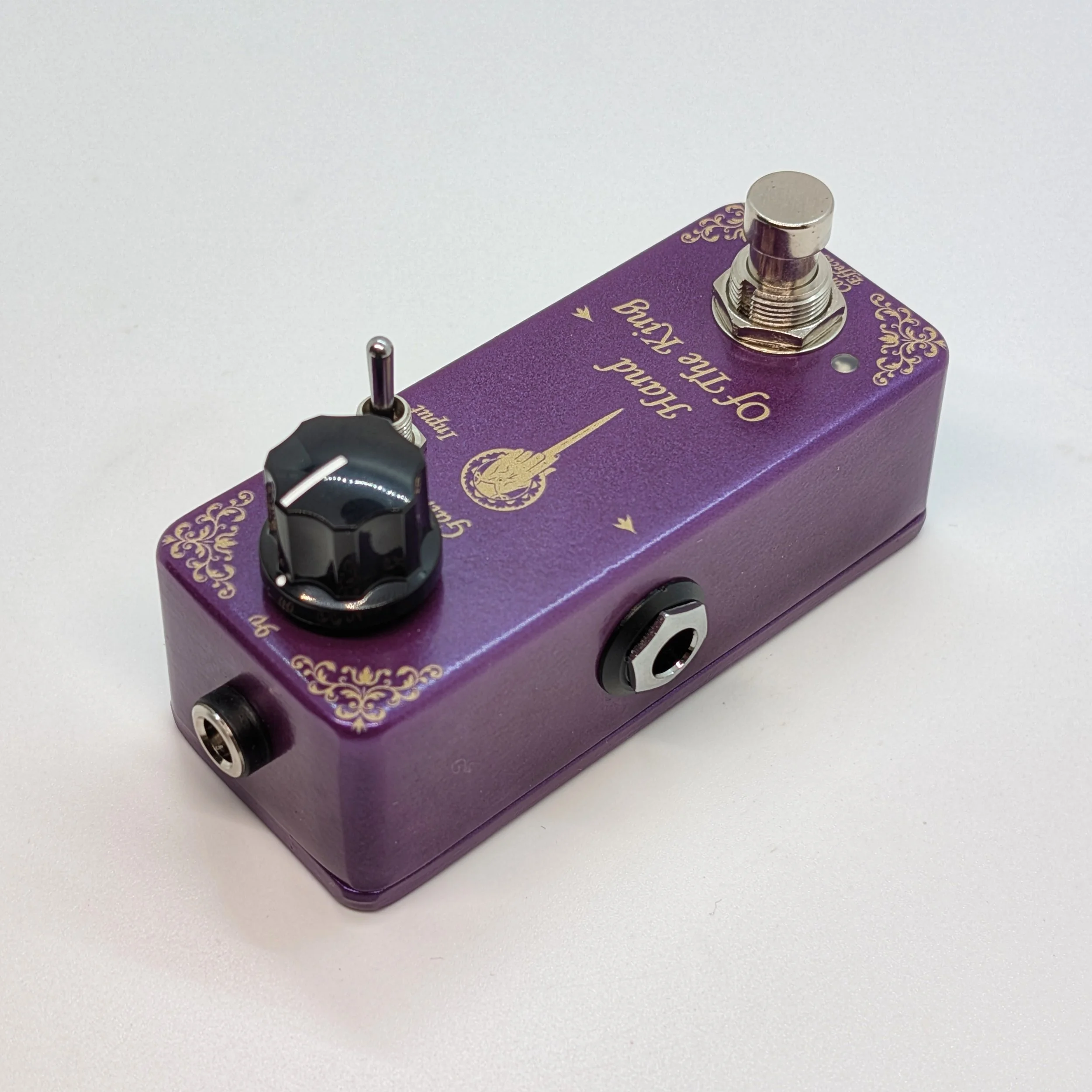

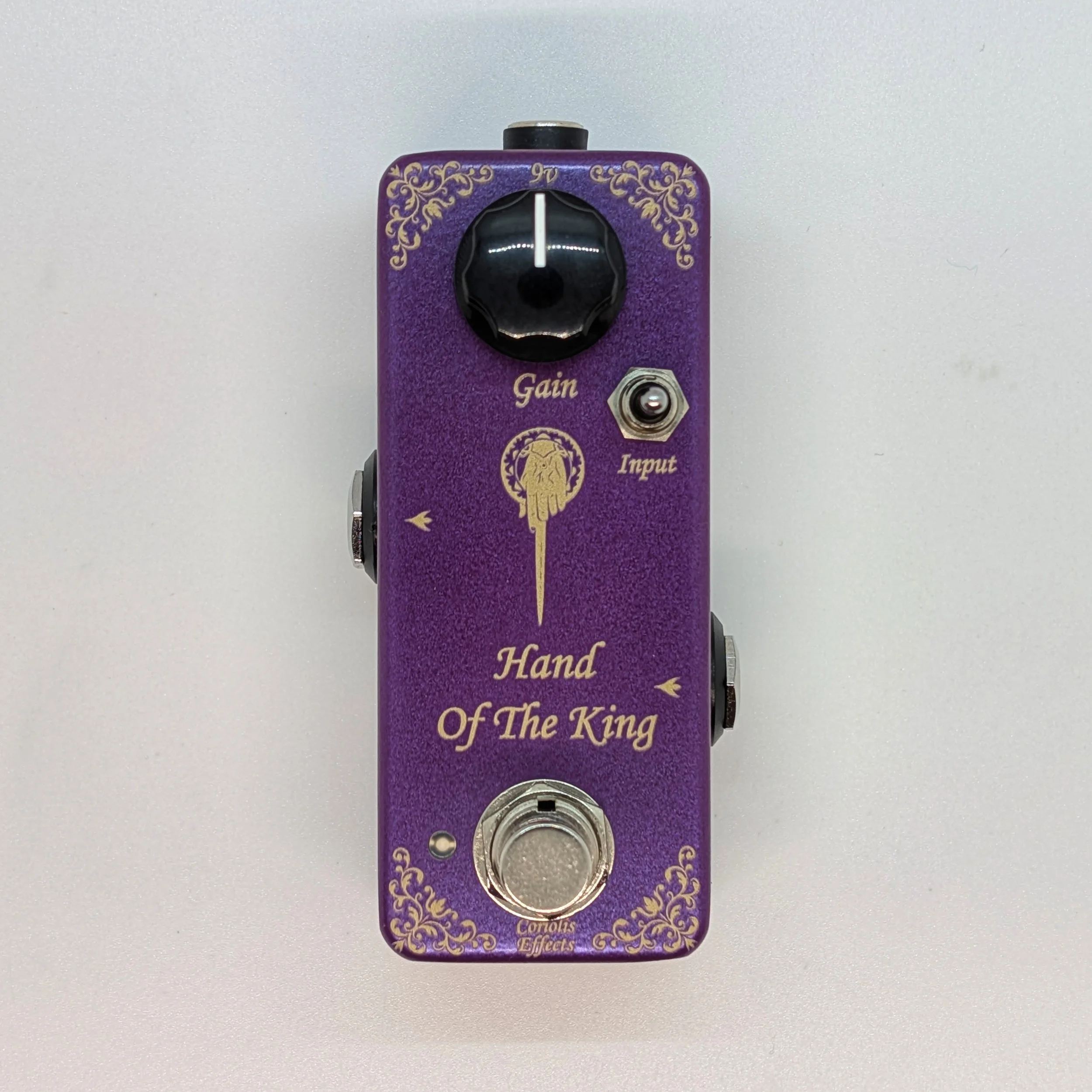

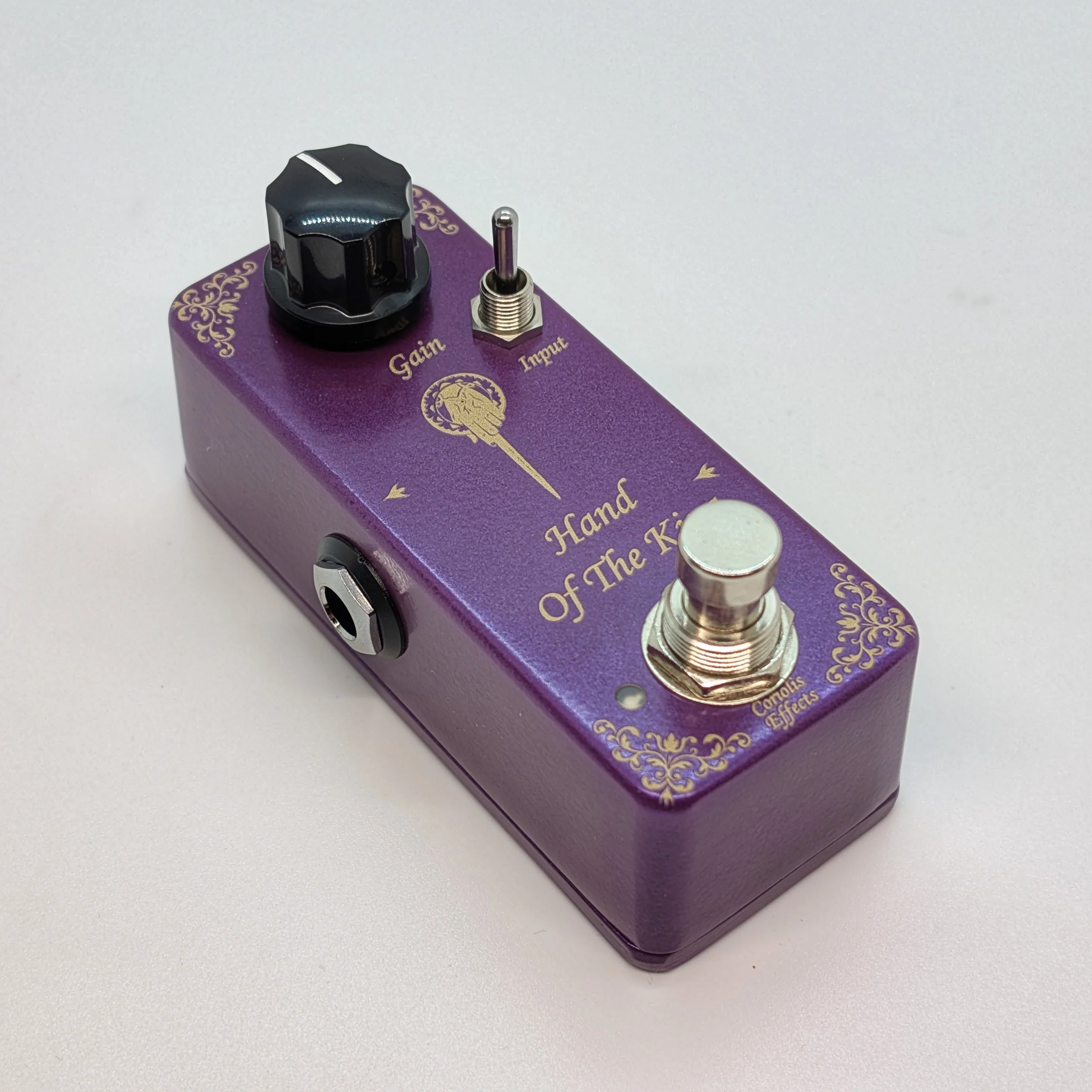

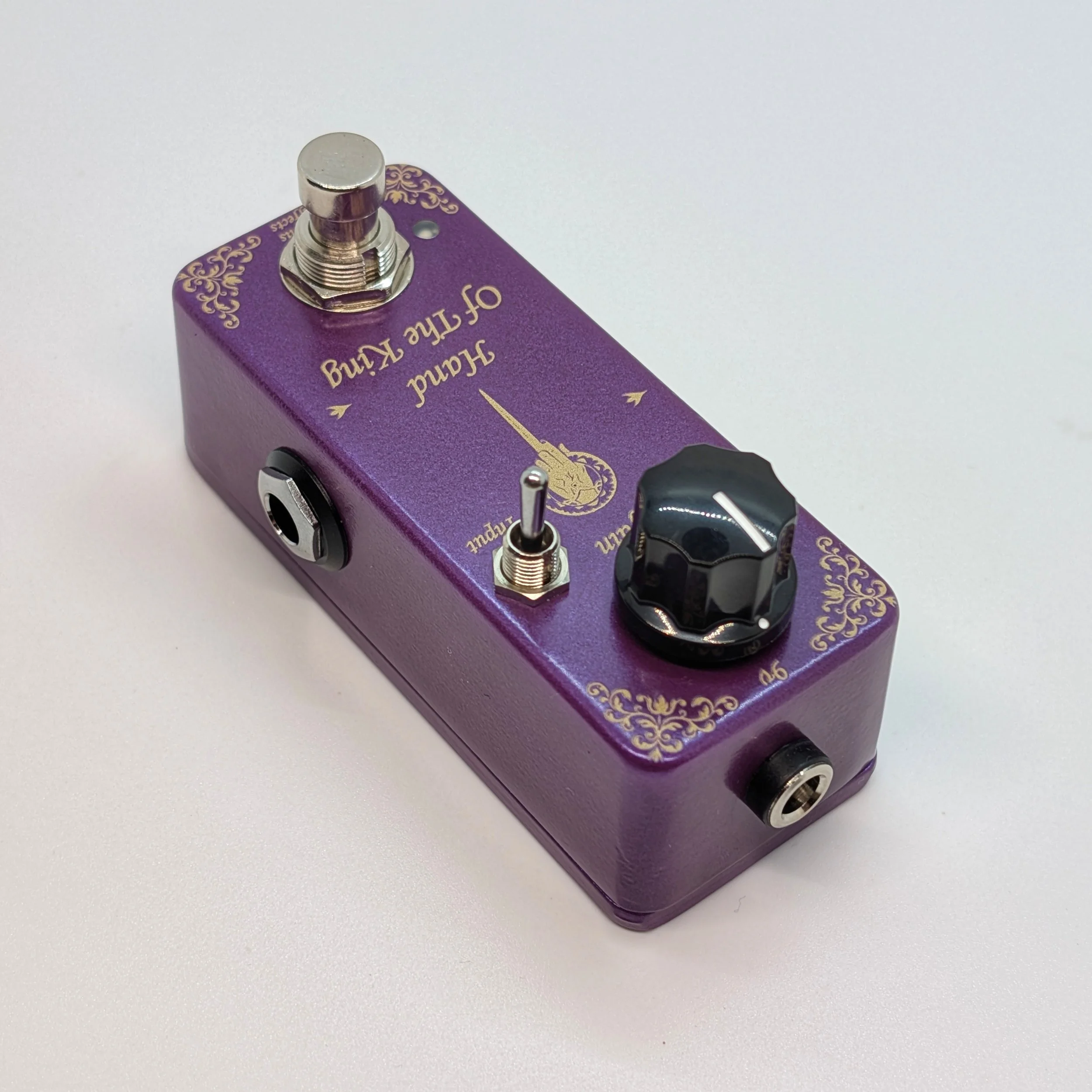

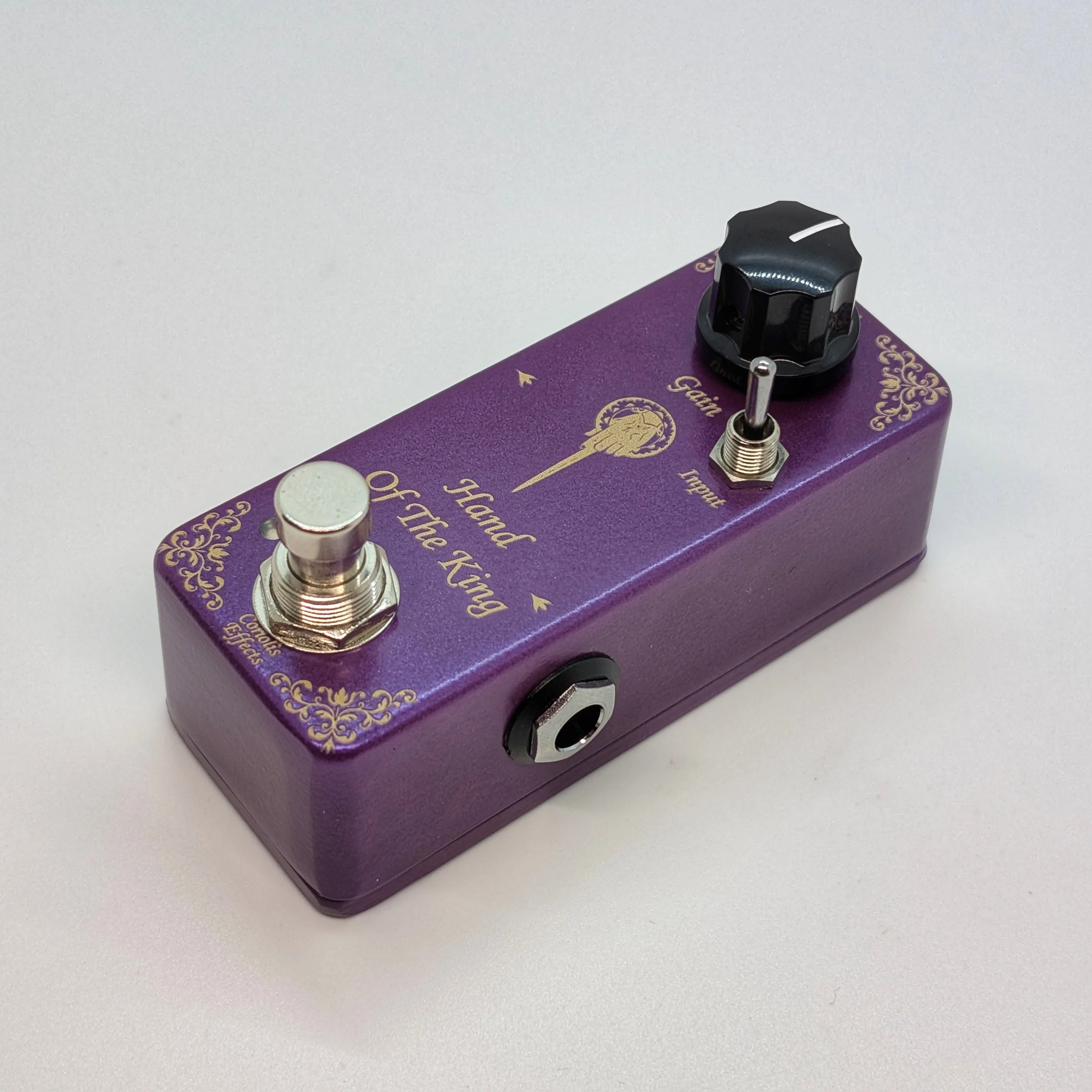

The Hand of the King is the treble booster circuit from the Hail to the King TB Edition.
It is a silicon Rangemaster style circuit that features:
NOS Fairchild 2N3640 transistor
NOS Panasonic ECQ film capacitors
3-way input toggle for adjusting the input frequencies
Alpha footswitch
Neutrik audio jacks
Lumberg DC jack
Note: The noise floor for this pedal can be rather high, which is typical of the circuit. Rolling back gain, treble and guitar volume can improve this. Use an isolated power supply when possible.
Use only a 9V DC center negative power supply (5x2.1mm)
